HOME > PRODUCTS CENTER > BS 4504 PLATE / FLAT FLANGE

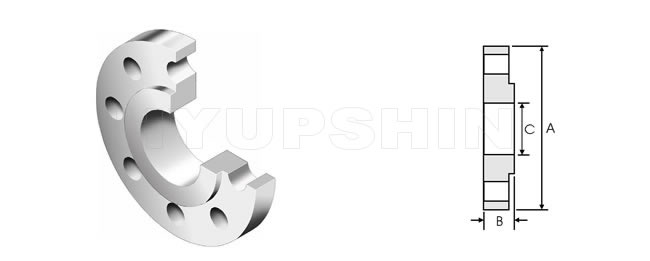

BS 4504 SLIP ON PLATE FLANGE RAISED FACE / FLAT FACE
Print The Page
PN6, PN10, PN16, PN25, PN40, PN64
Jinan Hyupshin Flanges Co., Ltd, BS4504 flanges manufacturer
British Standard BS 4504 : Section 3.1 : 1989 - Circular Flanges for Pipes, Valves and Fittings (PN Designated), Specification for Steel Flanges. This covers flanges in nominal pressure ranges PN 2.5 to PN 40 and nominal sizes up to DN 4000 (see table below). BS 4504 substantially agrees with ISO 7005-1 : 1992 (E) Part 1 : Steel Flanges.

BS 4504 : 1969 is still commonly used. This older standard allows for manufacture from bar, whereas the latest standard specifies that forging or plate are to be used, which can be significantly more expensive. There are minor differences in dimensions between the two versions. The following tables are based on the later version.

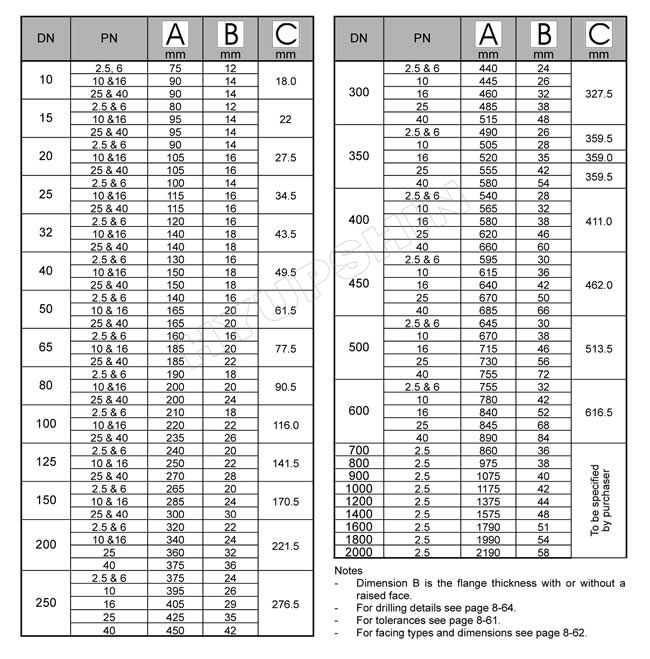

Flange Dimensions & Approximate Masses
Jinan Hyupshin Flanges Co., Ltd, BS4504 circular flanges, plate flanges, manufacturer
Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: ASTM A105, S235JR, C22.8, RST37.2, ST37, P245GH, P250GH, ASTM A181, Q235
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.


BS 4504 FLANGE
Jinan Hyupshin Flanges Co., Ltd, BS4504 flanges, BS T/D flanges, SABS1123 flanges, SANS1123 flanges, Manufacturer


Search
BS 4504 Plate Flange, NB15-NB2000
Slip On FF/RF Flange, Code 101,
T6/3, T10/3, T16/3, T25/3, T40/3

BS 4504 FLANGE
SLIP ON PLATE FLANGE
  BS 4504 SLIP ON PLATE FLANGE hyupshin flanges
WELDING NECK FLANGE
  BS 4504 WELDING NECK FLANGE
THREADED FLANGE (BSPT)
  BS 4504 THREADED FLANGE
BLIND / BLANK FLANGE
  BS 4504 BLANK FLANGE
SLIP ON BOSSED FLANGE
  BS 4504 SLIP ON BOSSED FLANGE
