BS 4504 detail
BS 4504 Code 101 Plate Flanges
BS 4504 Code 101 slip-on plate flange data and dimension chart for RFQ preparation.
EN 1092-1 focused
ASME B16.5 supported
PN-rated supply
Traceable documents
EN 1092-1Main product range
ANSI B16.5Class-rated American standard
PED / AD 2000 / UKCACertificate references
Importers & stockistsRepeat supply cooperation
European shipment markets
Flange supply support for European importers and distributors.
Hyupshin supports EN 1092-1, DIN, BS 4504, UNI and project-standard flange inquiries for buyers in United Kingdom, Germany, Hungary, Poland, Czech Republic, Croatia, Italy, Serbia, Slovakia, France, Norway, Portugal, Spain, Netherlands, Austria, Ireland, Albania, Bulgaria, Belgium, Greece.
RFQ preparation
Information that makes European standard flange quotation faster.
Standard
EN 1092-1, ANSI / ASME B16.5, DIN, BS 4504, UNI or project drawing.
Flange details
Type, DN size, PN rating, facing, bore and drawing notes.
Material
Carbon steel, low-temperature steel, stainless steel or project grade.
Documents
EN 10204 3.1, inspection, marking, packing and certificate needs.
Supply notes
BS 4504 Code 101 Plate Flanges for European buyers
RFQ confirmation points
Please confirm standard number, flange type, nominal size, pressure rating, material grade, facing, quantity, certificate requirement and any project drawing before quotation.
Product scope
Code 101 plate flange can be quoted in carbon steel, stainless steel or project material grades when the order specification, dimensions and certificate requirements are confirmed.
European buyer focus
Order details to confirm before production
Plate flange inquiries are reviewed against piping service, installation position and required facing.
State PN rating clearly, especially PN10, PN16, PN25 or PN40 for regular European distributor orders.
Common RFQs include carbon steel, low-temperature steel and stainless steel grades. Attach the project grade when it differs from regular stock items.
Confirm RF, FF, RTJ, galvanized finish, black paint, anti-rust oil or project-specific surface protection before quotation.
Mention EN 10204 3.1, PED, AD 2000, UKCA, PMI, NDT or third-party inspection requirements in the RFQ.
For European shipment, state pallet, wooden case, label, marking and mixed-size packing requirements early.
Procurement guidance
BS 4504 Code 101 Plate Flanges quotation notes
BS 4504 Code 101 Plate Flanges buying notes
BS 4504 flange orders are common in UK-related supply chains and older British standard specifications. Buyers may request plate, blind, threaded, hubbed slip-on or weld neck flanges by code reference, PN rating and material grade.
For importers and stockists, the important point is to match the code, pressure rating and facing clearly. If the inquiry is connected with a plant replacement order, the RFQ should mention whether the flange must match an existing stock list, customer drawing or current project specification.
Plate flange details
For plate flanges, drilling, outside diameter, thickness, bore and facing should be confirmed against the selected standard. These are common stock and distributor items, so mixed DN quantities should be listed in a clean table.
For European buyers, the quotation is stronger when documentation requirements are stated at the beginning: EN 10204 3.1 certificate, PED or AD 2000 references, UKCA notes, third-party inspection, PMI, NDT, marking photos or packing photos. This avoids revising the price after the technical review.
How to prepare the RFQ
Hyupshin recommends sending the RFQ as a table when several sizes are involved. Separate each standard, type, pressure rating and material grade into its own line, then add quantity, destination port and required delivery time. This format is easier for European importers, distributors and project suppliers to compare and repeat in future orders.
If the order is urgent, mark which sizes are needed first and whether partial shipment is acceptable. For repeat distributors, previous purchase records or customer part numbers can be added to the message field so the specification can be matched more quickly.
Reference scope
Common order references
| Standard / Type | Product | Typical scope |
|---|---|---|
| Code 101 plate flange | Product type | Dimensions and specification tables below |
| Documents | Material certificate | EN 10204 3.1 by request |
| Order control | Drawing / standard edition | Confirm before production |

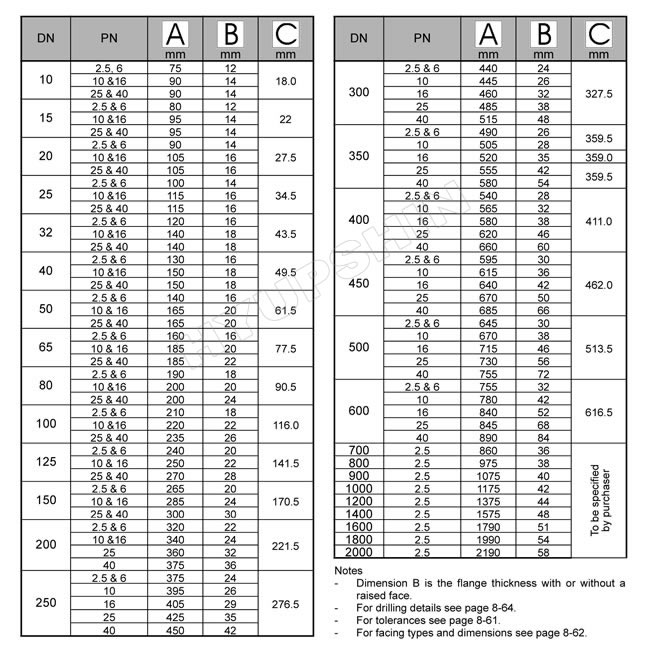

Product data
Dimensions and specification tables
Use these tables for RFQ preparation. Final production should be confirmed against the required standard edition, drawing, material grade and certificate requirement.
Send this product for quotation
Send Inquiry
BS 4504 Code 101 Plate Flanges RFQ support
Send the standard, DN size, PN rating, material grade, facing, quantity, certificate requirement and any project drawing. Hyupshin will check the specification before quotation.
